SPECIFICATIONS

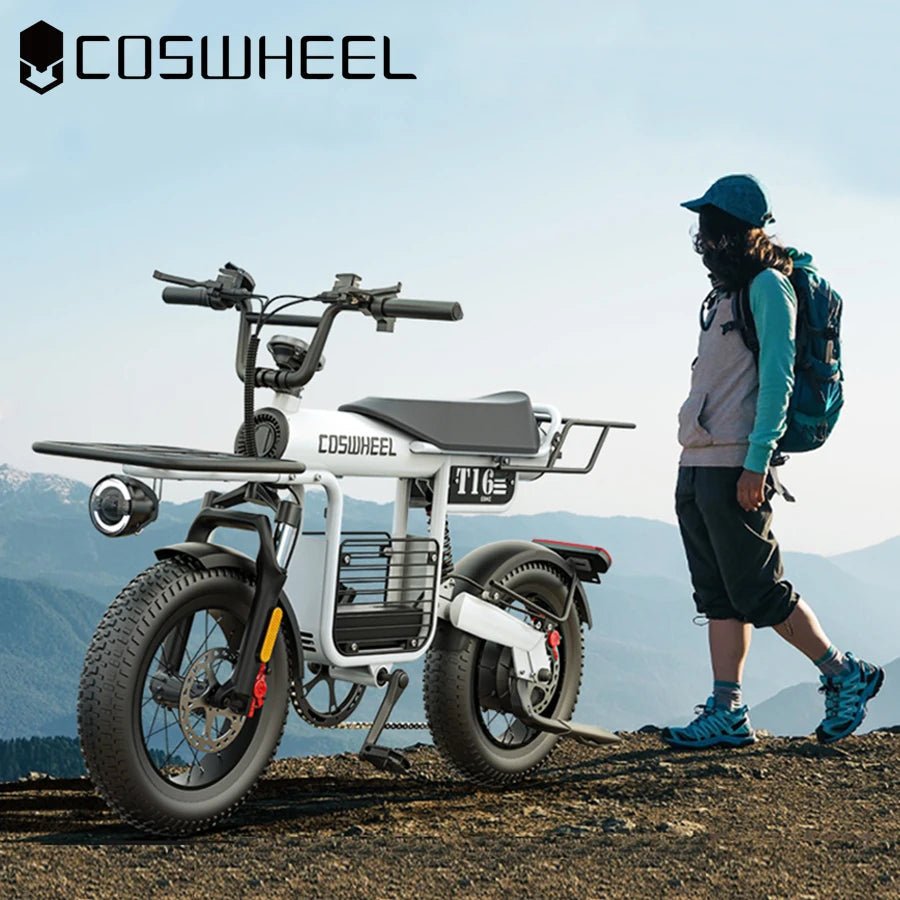

"SummitX T16 Electric Bike - Conquer Any Terrain with 20Ah Battery & 28mph Speed"

The SummitX T16 is built for the rider who seeks both adventure and efficiency. Powered by a 48V 1000W brushless motor, this electric bike delivers an exhilarating top speed of 28 mph (45 km/h) and offers impressive range capabilities. Whether you’re cruising the city or conquering mountain trails, the SummitX T16 delivers optimal performance. Its 48V 20Ah lithium battery provides up to 113 km (70 miles) of pedal-assist range, while the oil brake system ensures reliable stopping power. The robust 16-inch 4.0 tires and dual suspension system allow for smooth rides across varied terrains. Additionally, the bike’s LCD display and UDE remote control offer smart riding features for a modern, user-friendly experience.

Features:

• Powerful 1000W brushless motor with a peak 48V for smooth power
• 48V 20Ah lithium battery offering up to 113 km (70 miles) range in PAS mode
• Top speed of 28 mph (45 km/h) for thrilling rides
• Dual suspension system with 3000-pound rear suspension for maximum comfort
• Oil brakes for superior stopping power and safety
• 16-inch 4.0 tires ideal for off-road and city use
• LCD display with UDE remote control and NFC card support
• Retro-style front light with daytime running lights for added visibility
• Grip twist throttle for smooth acceleration control
• Pedal assist (PAS) and throttle-only modes for versatile riding options

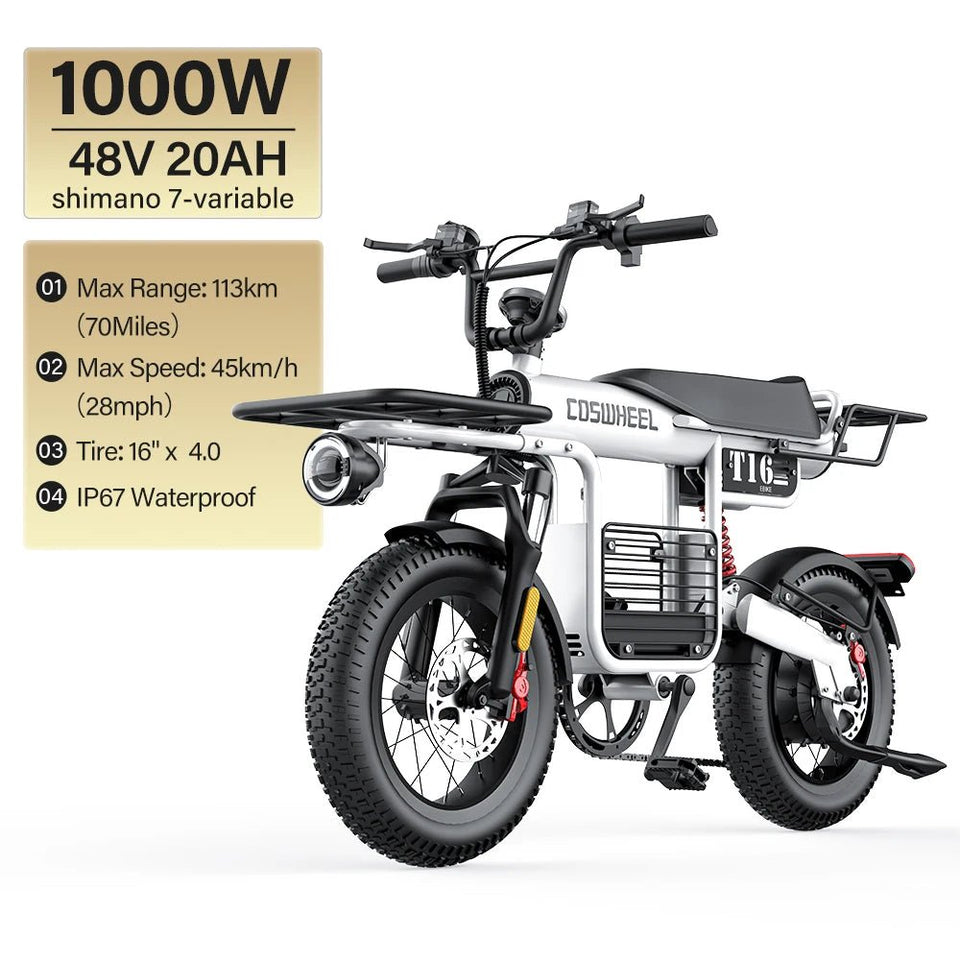

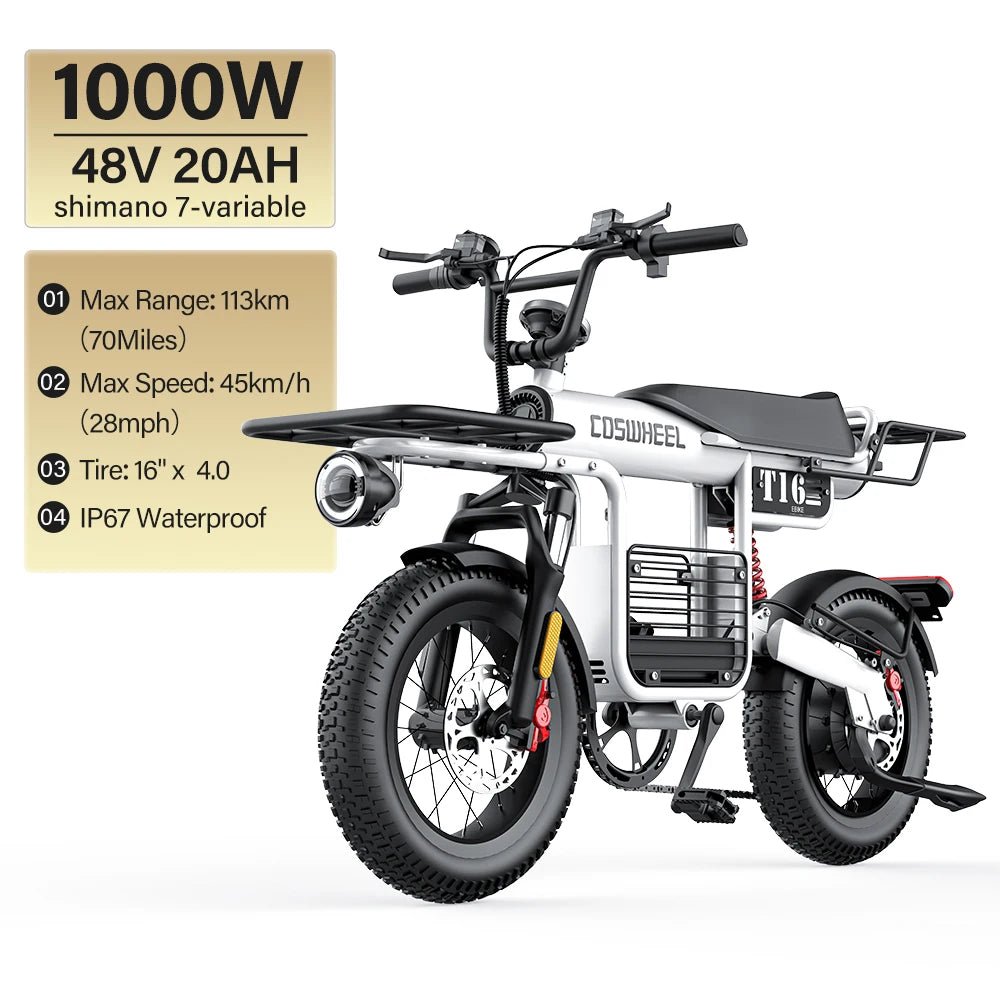

Model Name: T16

Top Speed: 28 Mph (45Km/h)

Range: 40+miles (64km) in Class-2 throttle-only mode (pure electricity); 70+miles (113km) in Class-1 PAS (pedal assist)

Brake: Oil brake

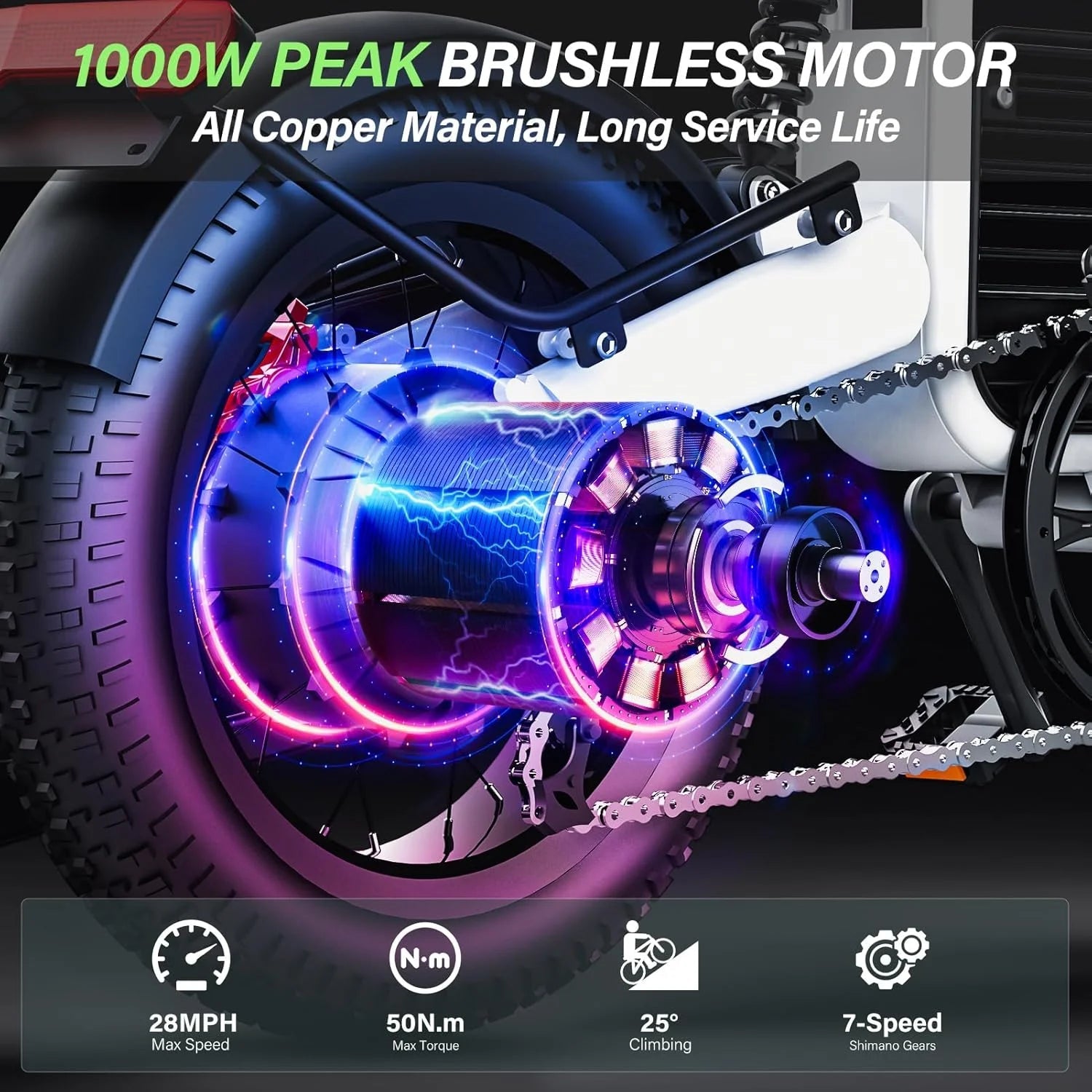

Motor: 48V Peak 1000W (Rated 750W) Brushless Rear Hub Motor 50N.m

Battery: 48V 20Ah Battery (Lithium 18650 Cells)

Energy: 960Wh

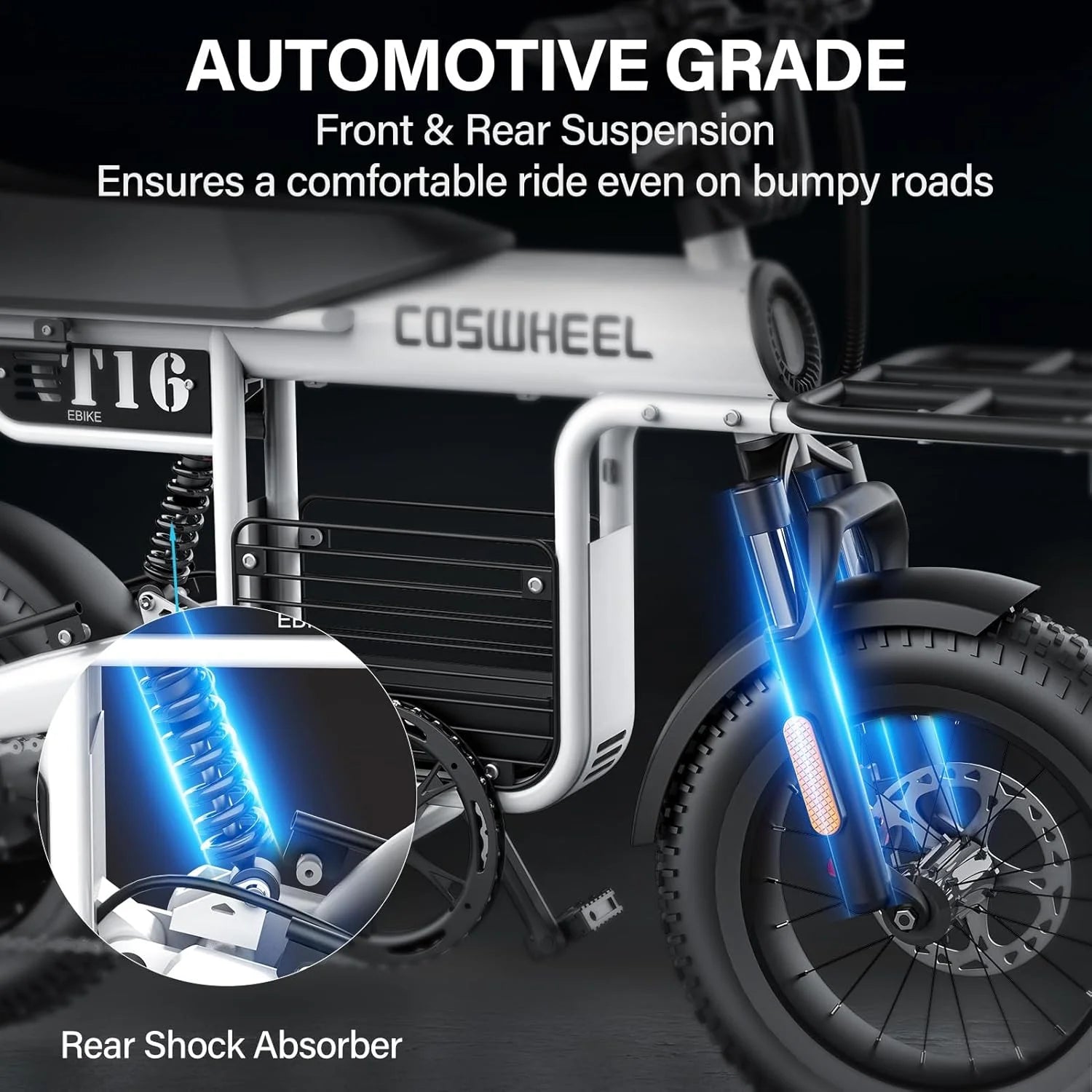

Front Suspension: Single-shoulder shock-absorbing front fork 16 inches * 4.0 * 135mm \ total height 385mm \ toothless riser length 215mm, 80mm Travel

Rear Suspension: 3000 Pounds, 170mm Travel

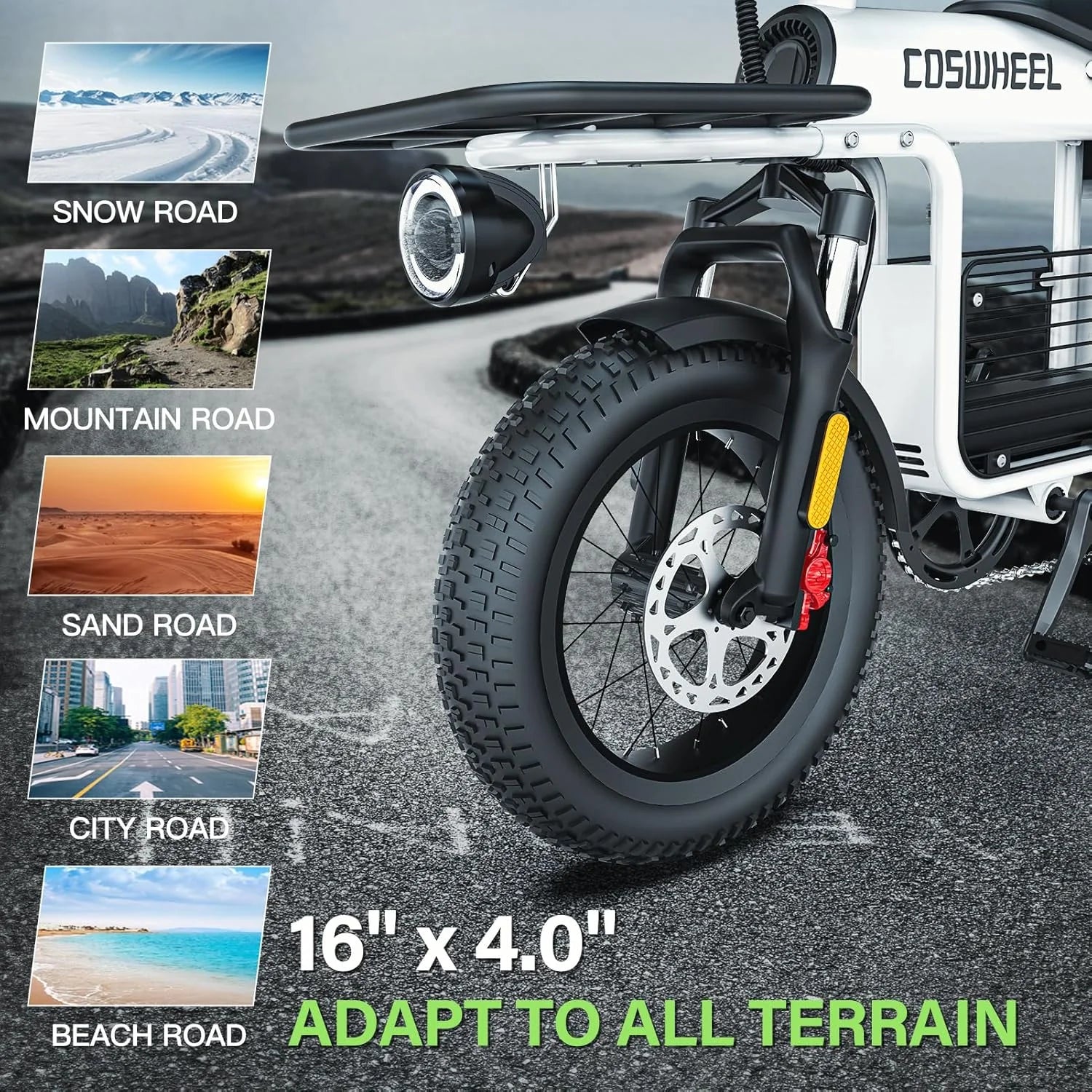

Tires: 16 inch 4.0

Throttle: Grip Twist Throttle

Charger: 48V 3A Charger

Display: LCD Display, Equipped with UDE remote control + 2 NFC cards

Controller: 48V 22A

Front Light: Round retro headlights with daytime running lights

Packing list：

Electric bike*1

Battery*1

Multi-function tool*1

Charger*1

Mudguard*2

Rear rack*1

Headlights Retro

The wide-angle design of LED high-flow headlights illuminates a wider range,the luminous intensity of the light illuminates the surrounding area to ensuret the safety of riding at night.

Signal light

Equipped with high-quality front and rear lights to illuminate your way.

LCD SCREEN

New Ul interface, the easy-to-read data display is more accurate;Equipped with

LCD screen sealed and waterproof,Clearly visible at night.

NFC Card / Remote Control Unlock

T16 adopts a new unlocking method, using NFC card and remote control instead of key switch.

Extra-long soft cushion

Soft PU fabric on the surface,Excellent heat dissipation and ventilation effect, high

elastic memory foam inside With the ergonomic design, better shock absorption effect to release the pressure on the buttocks.Max Load 200KG, It is also comfortable and stable for two people

.

Dual Piston Oil Brake

Double-piston power-off hydraulic brake, equipped with 180MM high-quality brake disc. The brake is soft and powerful, enhancing safety.

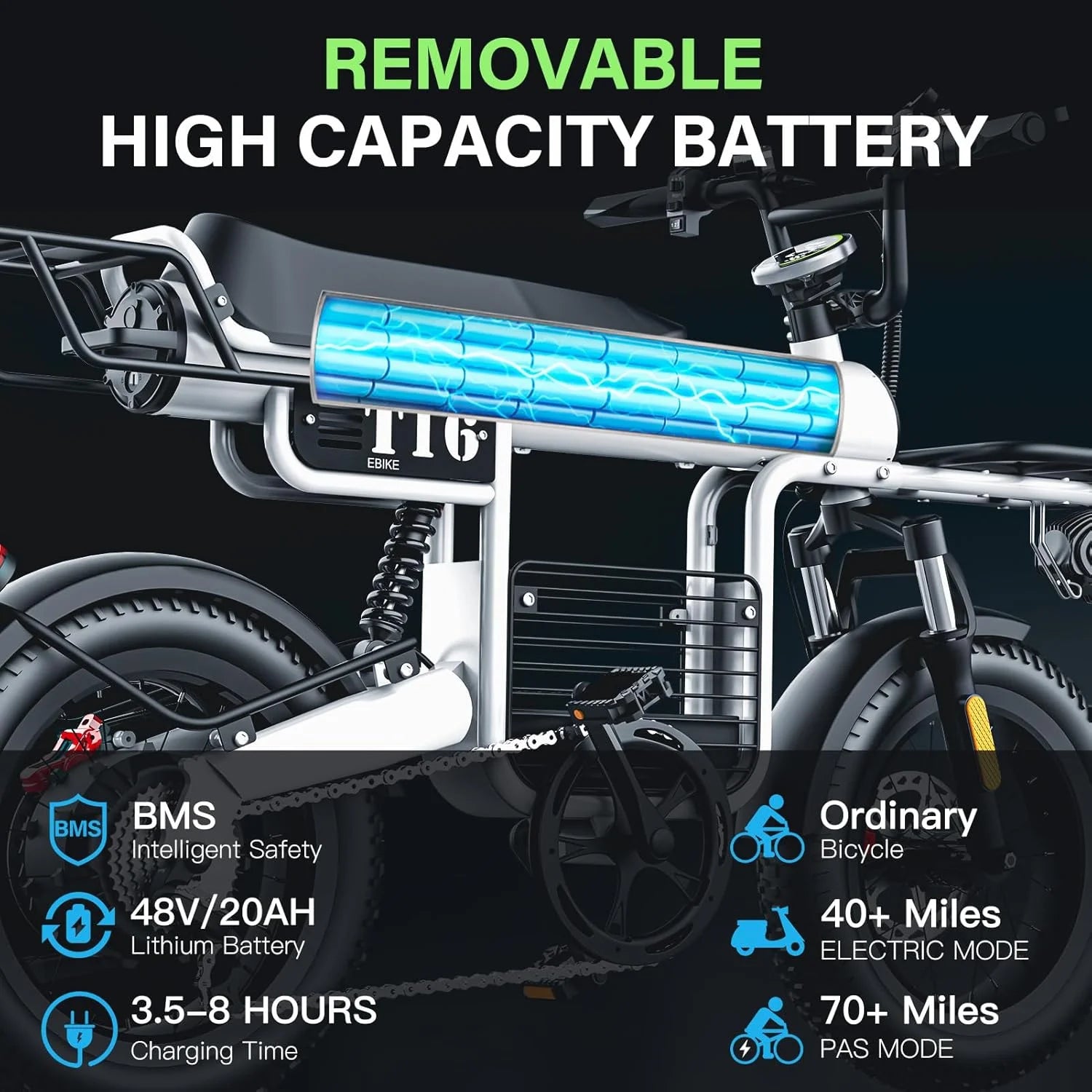

Two charging methods

The battery is disposed under the seat, two methods of charging with removable

battery: direct charging and remove to charge convenient to remove the battery

and charge or inserting the power supply into the frame to charge directly,Safe, waterproof

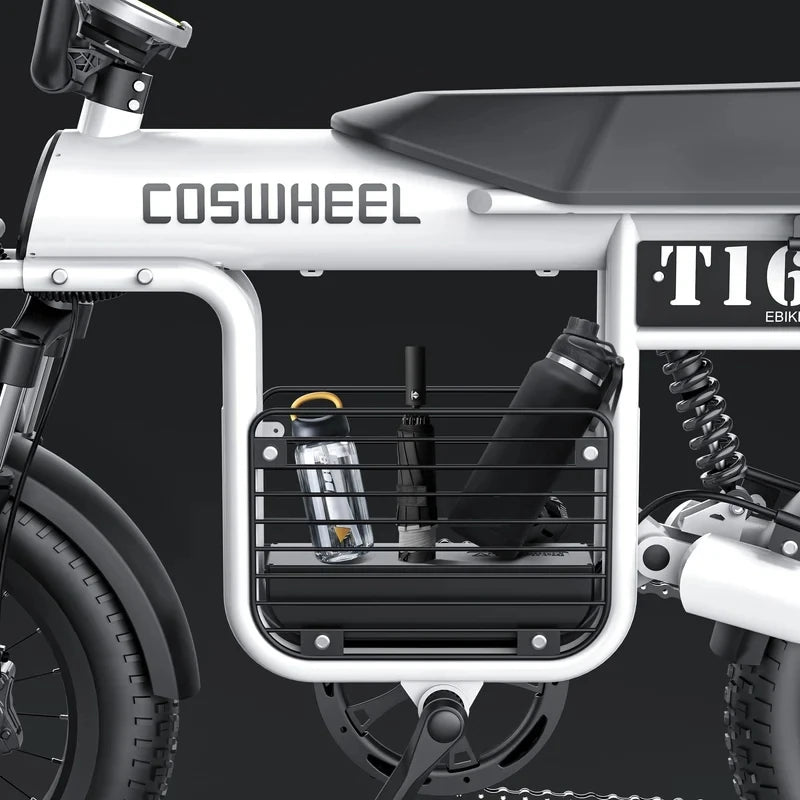

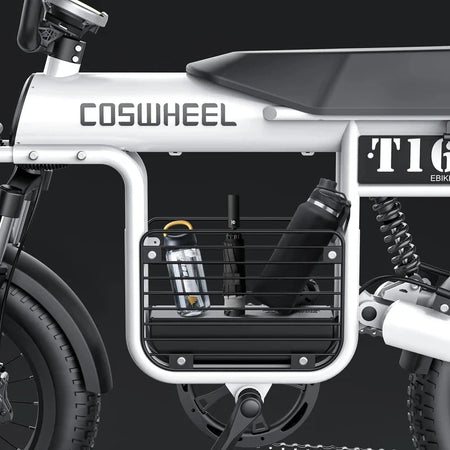

Optional fittings

Optional addition Front basket and Rear

basket
