SPECIFICATIONS

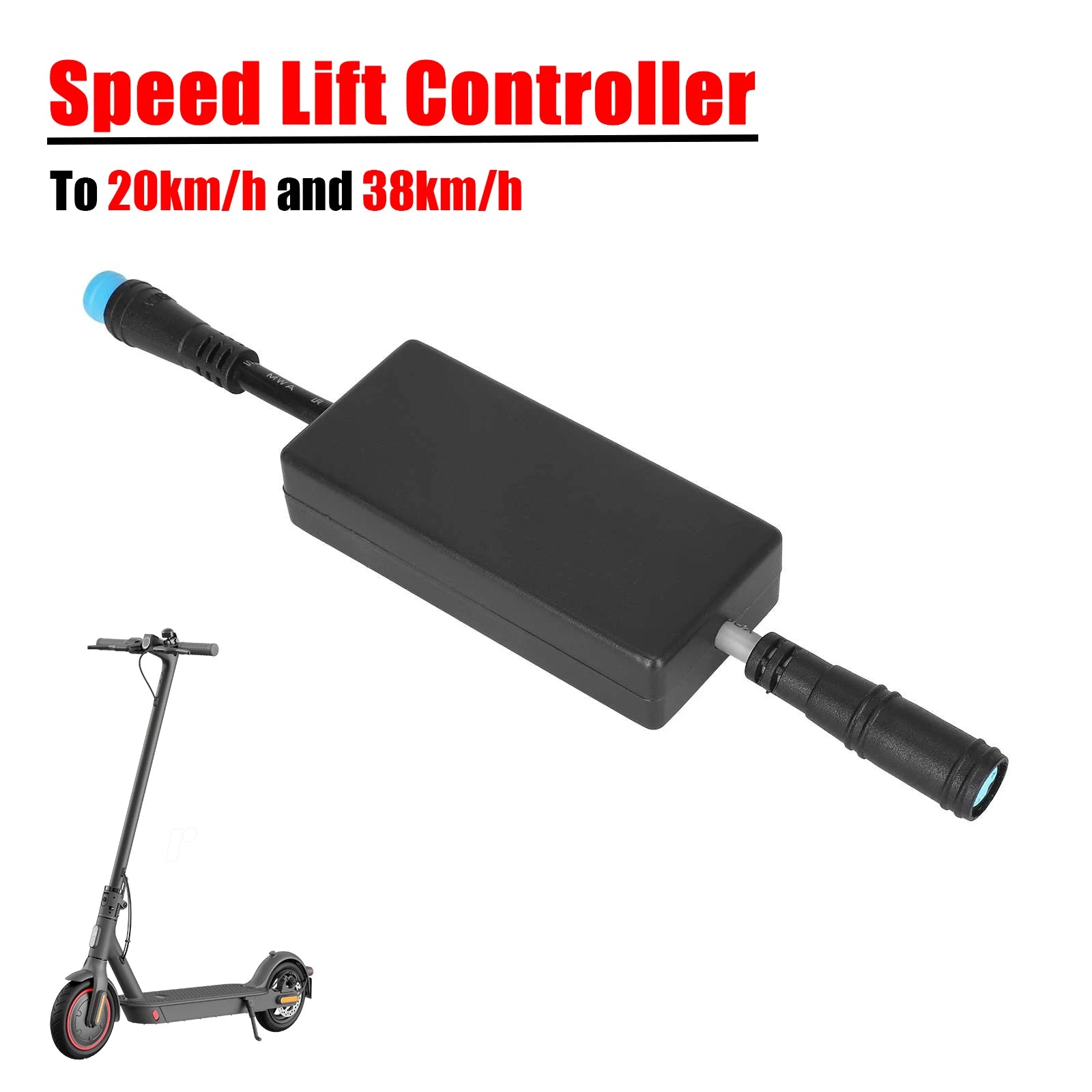

48V Scooter Speed Booster - Module for Xiaomi 1S/Pro/Pro 2 — Sleek, Lightweight & Easy Install

Adjustable speed: 20km/h or 38km/h

Functionality: Unlock the speed cap for regulating scooter

Installation Difficulty: Easy to install

Item: Electric Scooter Speed Lift Controller

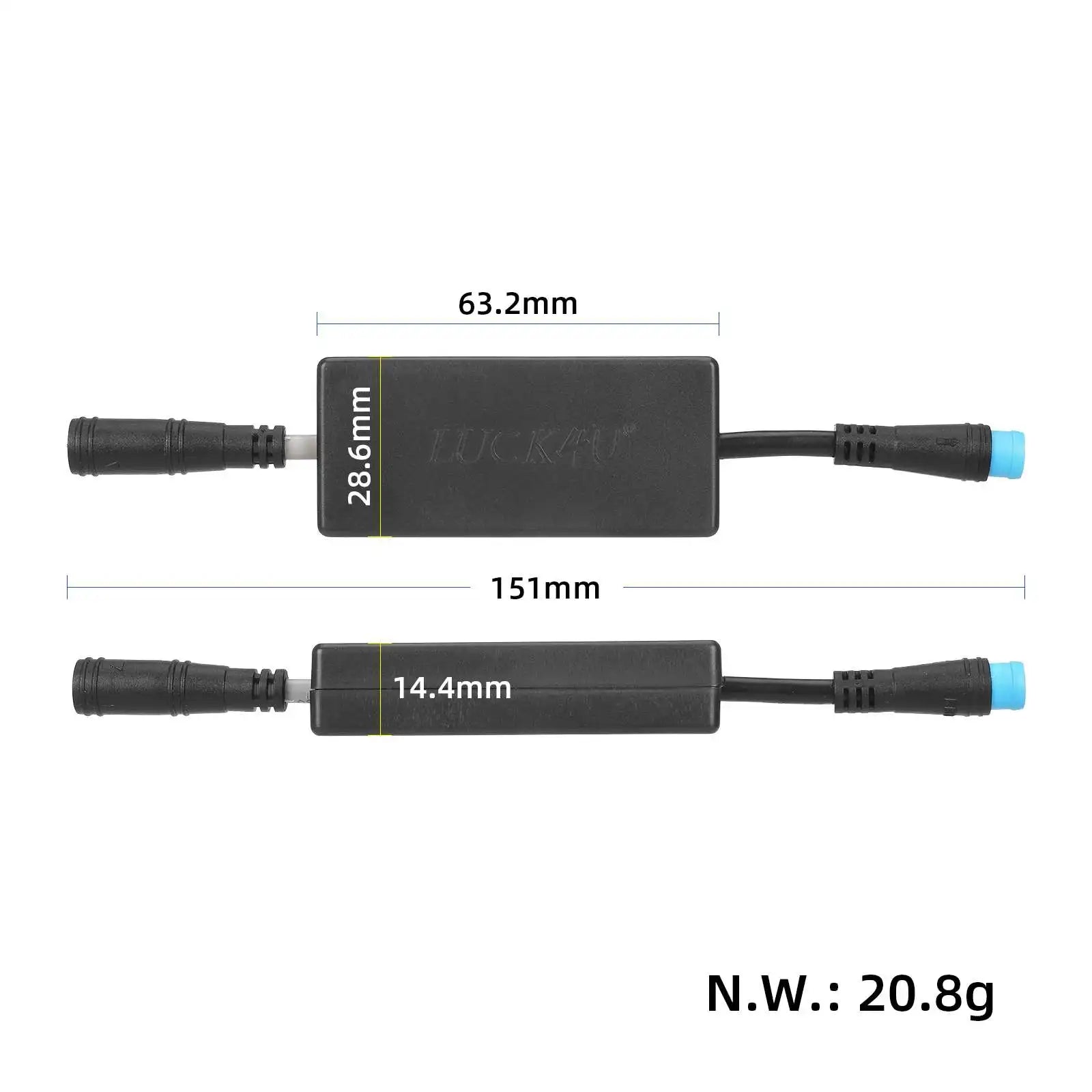

Item Size: Compact size, does not take up much space.

Item Weight: 20.8g

Material: Aluminum+Plastic

Model: For Xiaomi 1S Pro Pro 2 Scooter

Supported controller main chip: stm32, APM32

Type: Scooter Speed Lift Controller

Voltage: 48V

Please see the video below for specific installation instructions!

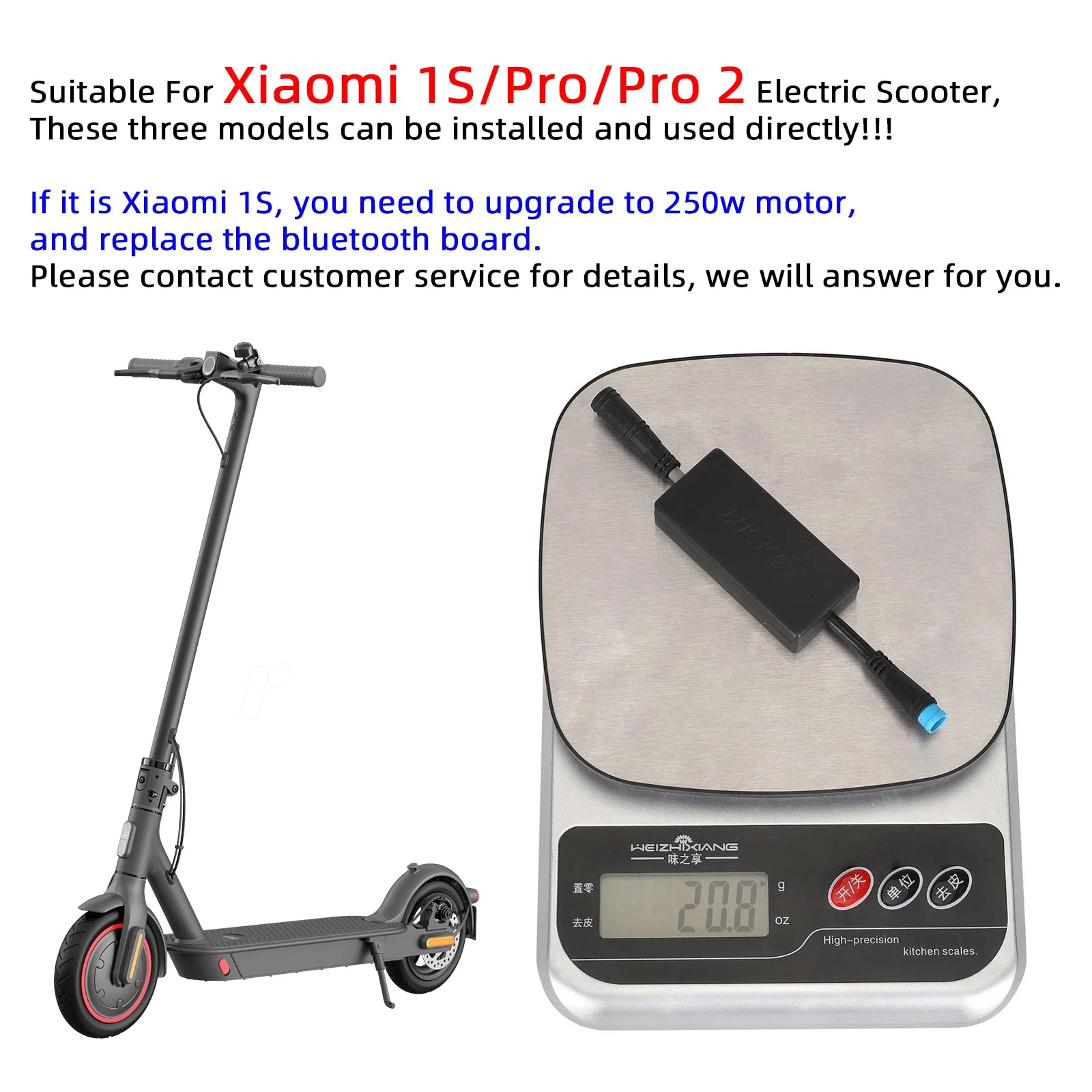

Supported Models

Vehicle: For Xiaomi 1S,Pro,Pro 2, if you want to install it on M365 scooter, you need to change the Bluetooth board to our version, and the motor needs to be changed to a higher version.

Attention

A. Please verify the model of your scooter, whether it is the model of for Xiaomi 1S/Pro/Pro2, and please make sure that it is the original model, if it is a copy of the model, we can't guarantee that it will be successful, if you want to use our governor, you can replace the Bluetooth board and controller to use our governor;

B. The governor product is by changing the software version of the car, and achieve the purpose of the speed, if your original motor is 250W, may speed up will not be great, because the motor limits the speed of the whole car, the motor can not take the speed of 38km/h, if you want to speed up a lot, please replace the motor to 350W and above;

C. This product is not applicable to public transportation areas, through the modification, may be your controller software version has been changed, may be your insurance will be invalidated, the specific risk , please understand by yourself. This product is only suitable for private venues, the manufacturer and seller do not assume any risk, use at your own risk, do not assume any responsibility for scooters or other damage caused.

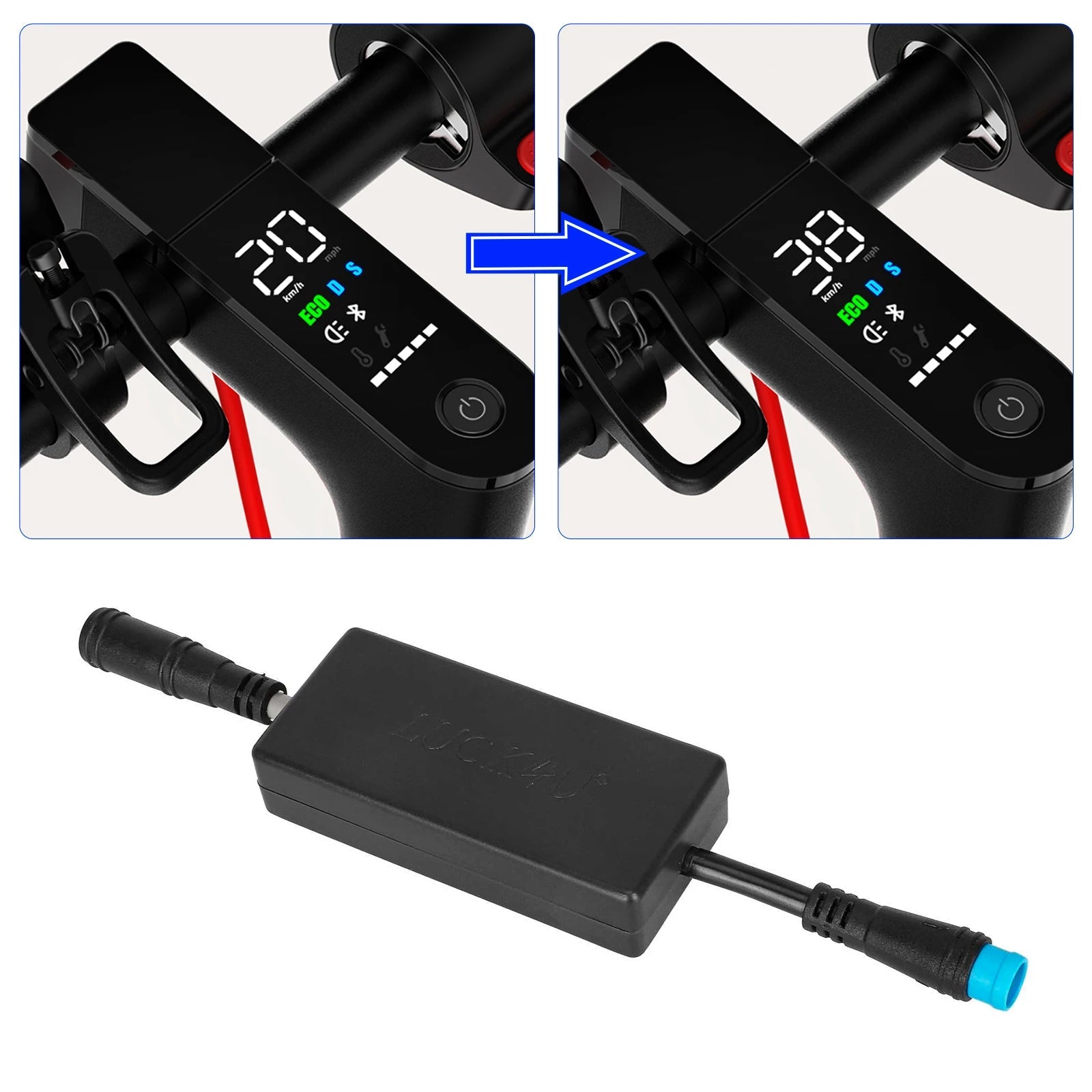

1.The governor has 2 speed states:

(1)Low speed status - speed up to 20km/h, factory default is “low speed status”.

(2) High-speed status - speed up to 38km/h.

Steps for use

1.Turn off the scooter

2.Remove the four screws on the top of the scooter's riser, which are located under the scooter's meter, keep these four screws;

3. Open the lever, you will see the meter and a wire connected, there is a plug in the middle, please unplug it; 4. Insert the governor into the middle of the meter and the wire, pay attention to the notch and insert it, don't break the needle inside;

5. Then put the governor into the center of the riser, and reinstall the 4 screws taken off;

6. Long press the on button of the Bluetooth board to turn the scooter on;

7. Press the brake 3 times, then press the gas pedal 3 times, the governor will display the number 38, that is giving your scooter brush, at this time please do not do any operation, until the scooter's display shows 0 until, that is, brush the end of the maneuver, when the display shows 0, please turn off the scooter, restart again, at this time, the speed of the scooter has reached 38 yards, you can carry out the test;

More functions

If you want more features, you can connect our proprietary WIFI, the default password is: 88888888, and then open the URL: 192.168.5.2 through the cell phone browser, you can see more features of this regulator.

WIFI name and password

“1. The WIFI name of the regulator is Luck4U + the last four digits of the serial number.

2.WIFI password, default is 8888888888

3.WIFI password reset:

Every time you change the scooter or scooter controller, or after the controller serial number, restart the scooter, the WIFI password will be reset to 88888888888”

Normal use of the scooter

“1. Users can get and display all the data of the scooter, such as serial number, battery level, etc., through the official app or third-party app.

2.Note that this scooter governor, if users use the official app or third party app to upgrade the firmware or brush the controller, then it will fail.

3. Users can set the scooter parameters through the official app or third-party app, such as locking the scooter. Unlock. Energy recovery. Tail light always on. Metric system, etc.

4.The scooter meter can display the speed of the scooter normally. Gear position. Power level. Lights on. Metric system. Bluetooth connection status, etc.

5. Users can normally switch on and off. Switch light. Switch gear light operation”

Fault code display

“Fault codes can be displayed normally, such as common fault codes:

Throttle fault-14, brake fault-15, battery communication fault-21, overheating alarm-40, etc.”
