SPECIFICATIONS

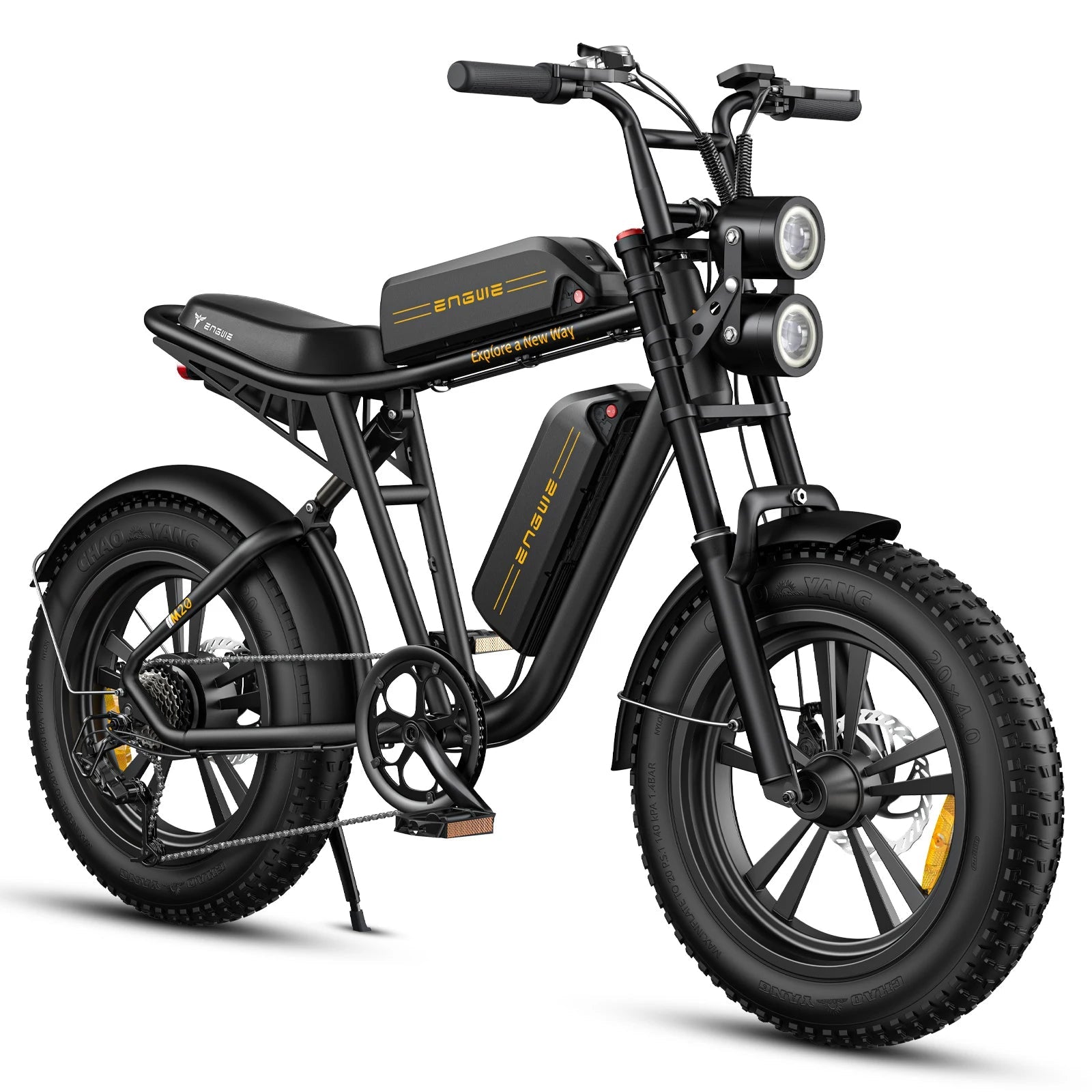

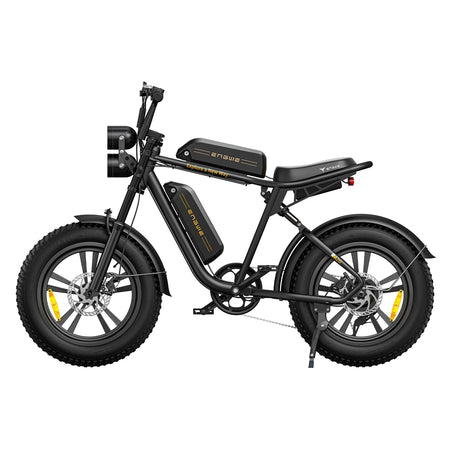

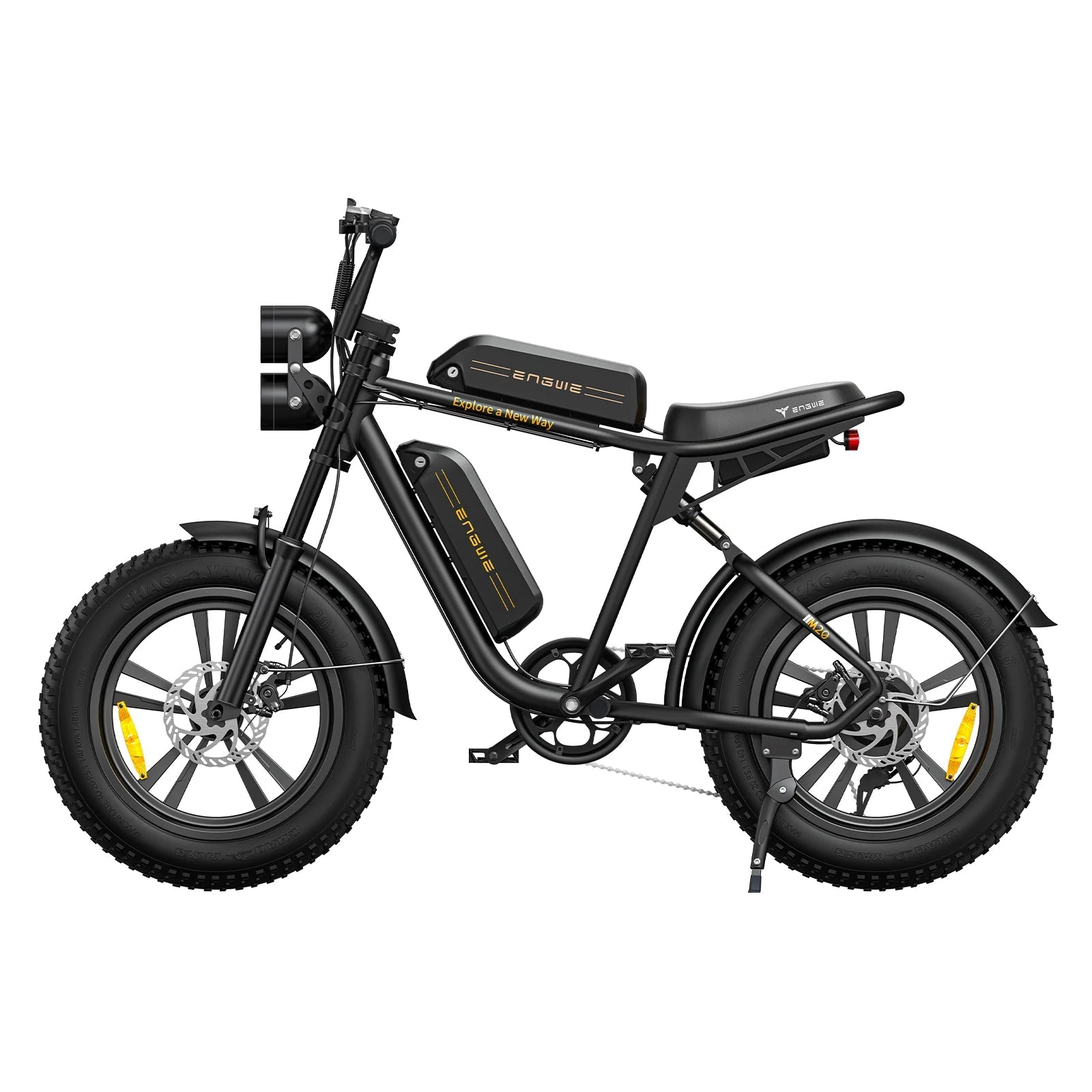

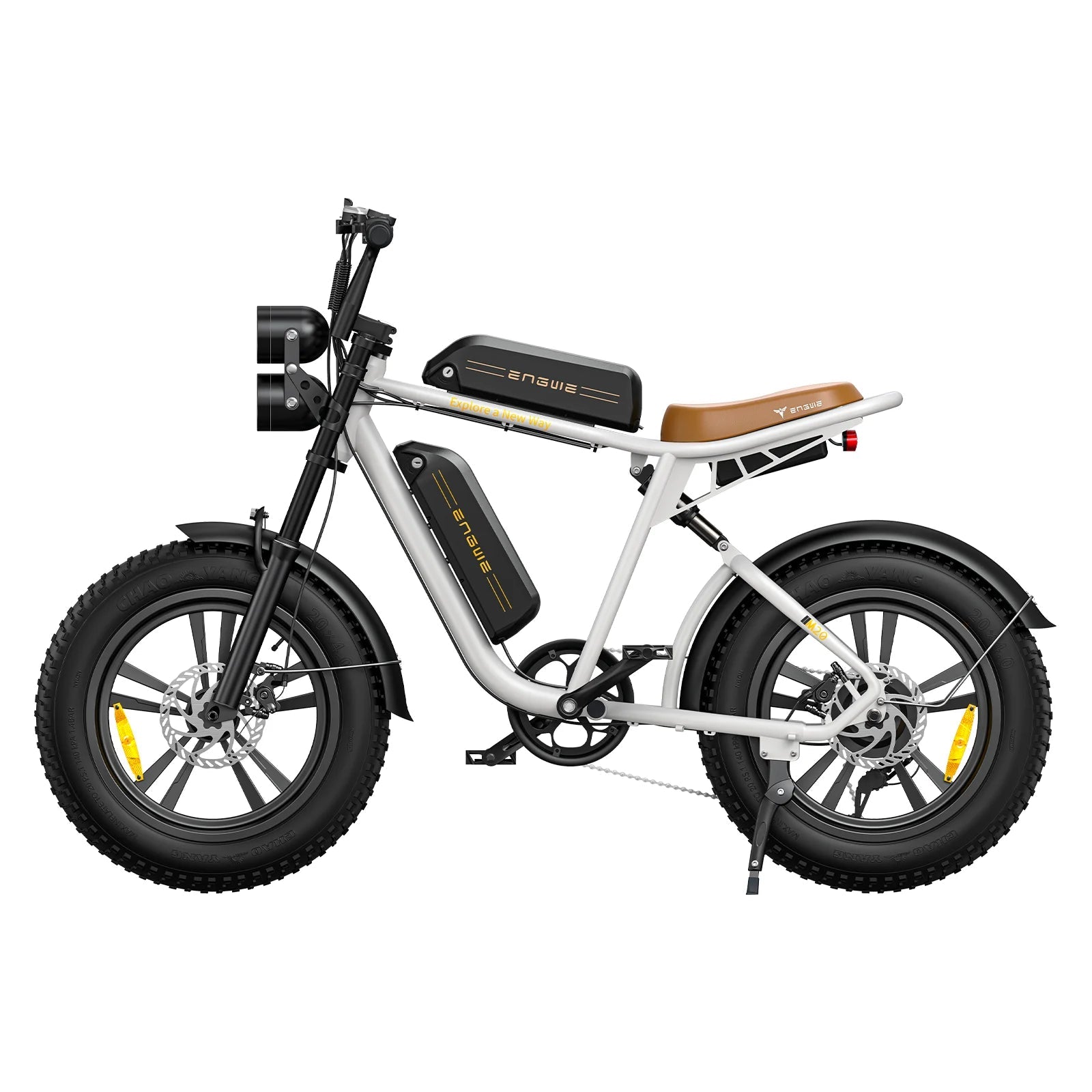

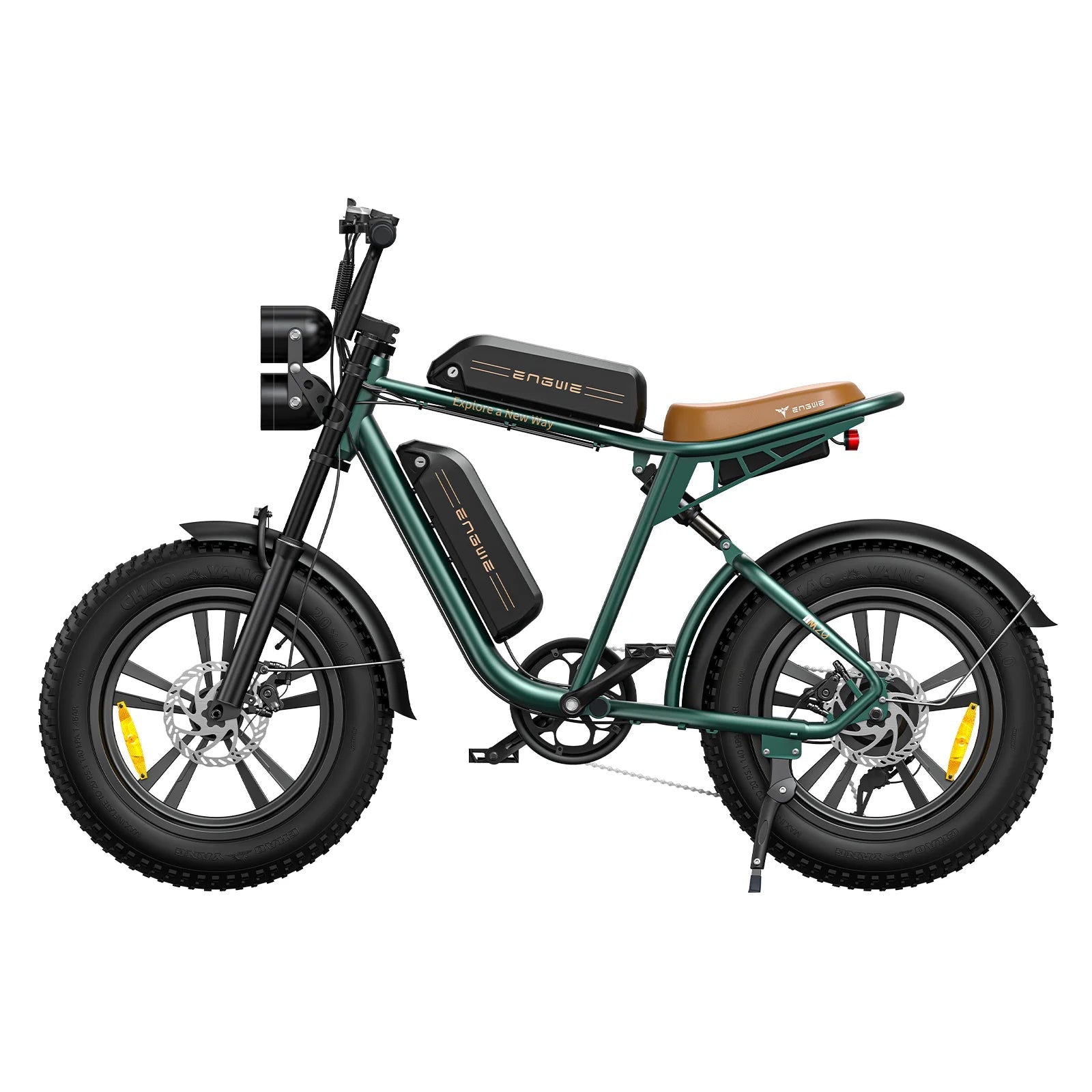

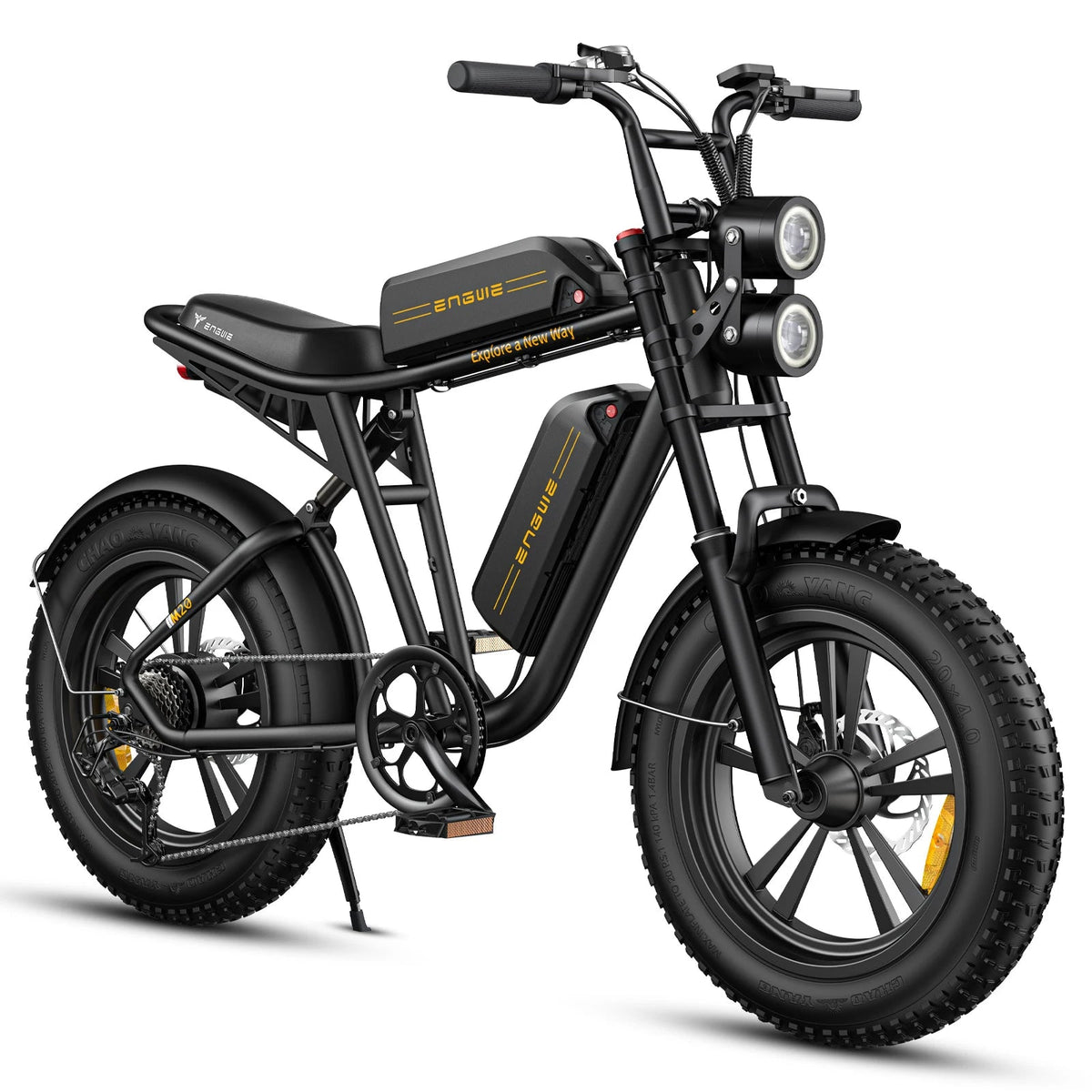

ENGWE M20 Fat-Tire Electric Bike – 28 mph Top Speed, 150 km Max Range, Full Dual Suspension

• Motor: 750 W rear hub motor (1000 W peak), delivers 55 N·m torque and reaches 28 mph (~45 kph)
• Batteries: Two 48 V 13 Ah lithium-ion batteries (26 Ah total)—roughly 150 km max range at PAS 1; dual charge takes 6–8 hrs .
• Transmission: Shimano 7‑speed Tourney derailleur allows versatile pedaling
• Suspension & Tires: Full suspension with 20 x 4.0″ fat tires offers smooth off-road comfort
• Brakes: 160 mm mechanical disc brakes front and rear—adequate, though not as strong as hydraulic setups .
• Display & Lights: Backlit LCD shows speed, battery, assist mode; equipped with dual LED headlights, brake light, horn, and USB charging port
• Build: 6061 aluminum frame, folding design, weighs 34.8 kg (bike) / 45.9 kg gross; supports up to 120 kg load
• Sizing: Unfolded: 104 × 55 × 84 cm; suitable for riders 160–190 cm tall; folds compact for storage

Size:

Package Size: (L* W* H): 56.2 *11.8*27.5 (inchse) or 143*30*70 (cm)

Unfolding Size (L*W*H): 40.9*21.6*33.0 inches or 104*55*84 cm

What's in the box:

M20 E-bike*1

48V13Ah Lithium-Ion*2

Battery Charger*1

Assembly Tools*1

Pedals*2

Handle Bars Shipped Installed On Bike*1

User Manual*1

Dual 13Ah Detachable Batteries for Extended Range: With two 13Ah removable lithium-ion batteries, you can enjoy up to 44 miles+44 miles of range on PAS mode 1, ensuring long-distance adventures without worrying about running out of power.

Powerful 750W Brushless Motor: The 750W motor provides strong performance with 55 N.m of torque, enabling smooth rides across various terrains, from city streets to rugged off-road paths.

Durable Fat Tires for All-Terrain Capability: Equipped with 20 x 4.0 fat tires, this bike offers exceptional traction and stability on all terrains—whether it’s sand, snow, gravel, or pavement—making it ideal for both urban and off-road riding.

Shimano 7-Speed Gear System for Versatility: The Shimano 7-speed system ensures smooth shifting for a comfortable ride on different inclines and surfaces, giving you full control over your ride.

High Load Capacity and Adjustable Fit: With a maximum load capacity of 264.5 lbs (120 kg) and a rider height range of 5.2-6.2ft, this e-bike is designed to accommodate a wide variety of riders, ensuring a comfortable and safe ride for all.
