SPECIFICATIONS

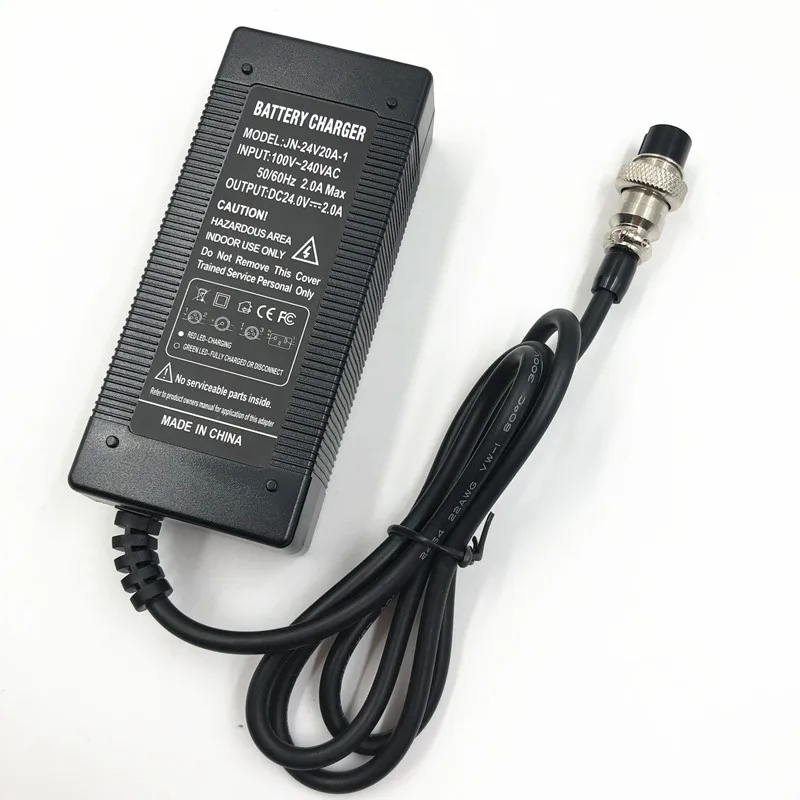

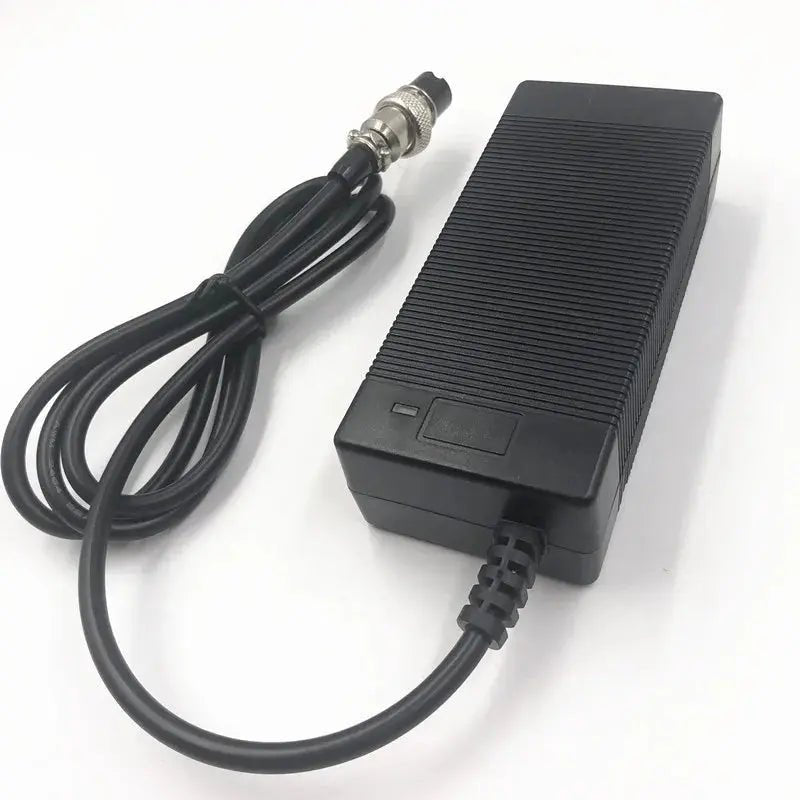

24V Lead-Acid Charger Efficient, Intelligent, and Fast Charging with the JN-24V20A Lead-Acid E-Bike Charger

Keep your electric vehicle powered up with the JN-24V20A Lead-Acid E-Bike Charger. Designed for use with lead-acid batteries, this charger provides fast and efficient charging for a wide range of electric vehicles, including E-scooters, E-bikes, wheelchairs, and golf carts.

With intelligent charging technology, this charger automatically adjusts its charging mode from CC (Constant Current) to CV (Constant Voltage), ensuring that your battery is charged safely and efficiently every time. It supports 2-piece lead-acid batteries and is equipped with multiple protection features including short circuit, overload, and over-voltage protection, providing peace of mind for both the user and the battery.

The JN-24V20A charger comes with an LED display to indicate the charging status—Red when charging is in progress and Green when the battery is fully charged. This charger supports a wide input range of 100-240V AC at 50-60Hz, making it ideal for global use with plug options available for AU, EU, US, and UK standards.

Whether you’re charging an e-bike, e-scooter, or other lead-acid battery-powered device, the JN-24V20A Lead-Acid E-Bike Charger offers reliable, fast, and intelligent charging for your needs.

Key Features:

• Charging Mode: CC to CV (Constant Current to Constant Voltage) for safe and efficient charging.
• LED Status Indicator: Red for charging, Green for fully charged.
• Universal Plug Options: AU, EU, US, UK plugs available.
• Intelligent Charging: Automatically adjusts to ensure optimal battery charging.
• Protection Features: Short circuit, overload, and over-voltage protection for safety.
• Input Voltage: 100-240V AC 50-60Hz for use worldwide.
• Battery Compatibility: Ideal for 2-piece lead-acid batteries.
• Certification: CE certified for quality and safety.
• Use: Designed for E-scooters, E-bikes, wheelchairs, and golf carts.
• Compact and Lightweight: Easy to carry and store.

Quick charge: Yes

Data Transmission: no

Intelligent Charge: Yes

Display screen: No

Type: Electric

Certification: CE

Use: Standard Battery

Model: JN-24V20A

Package: Yes

Socket Standard: XLRF

whether original: original

Apply to: E-scooter Ebike Wheelchair Golf Cart Lead-Acid battery

input: 100-240V AC 50-60HZ

Protections: Short circuit/ Overload/ Over voltage

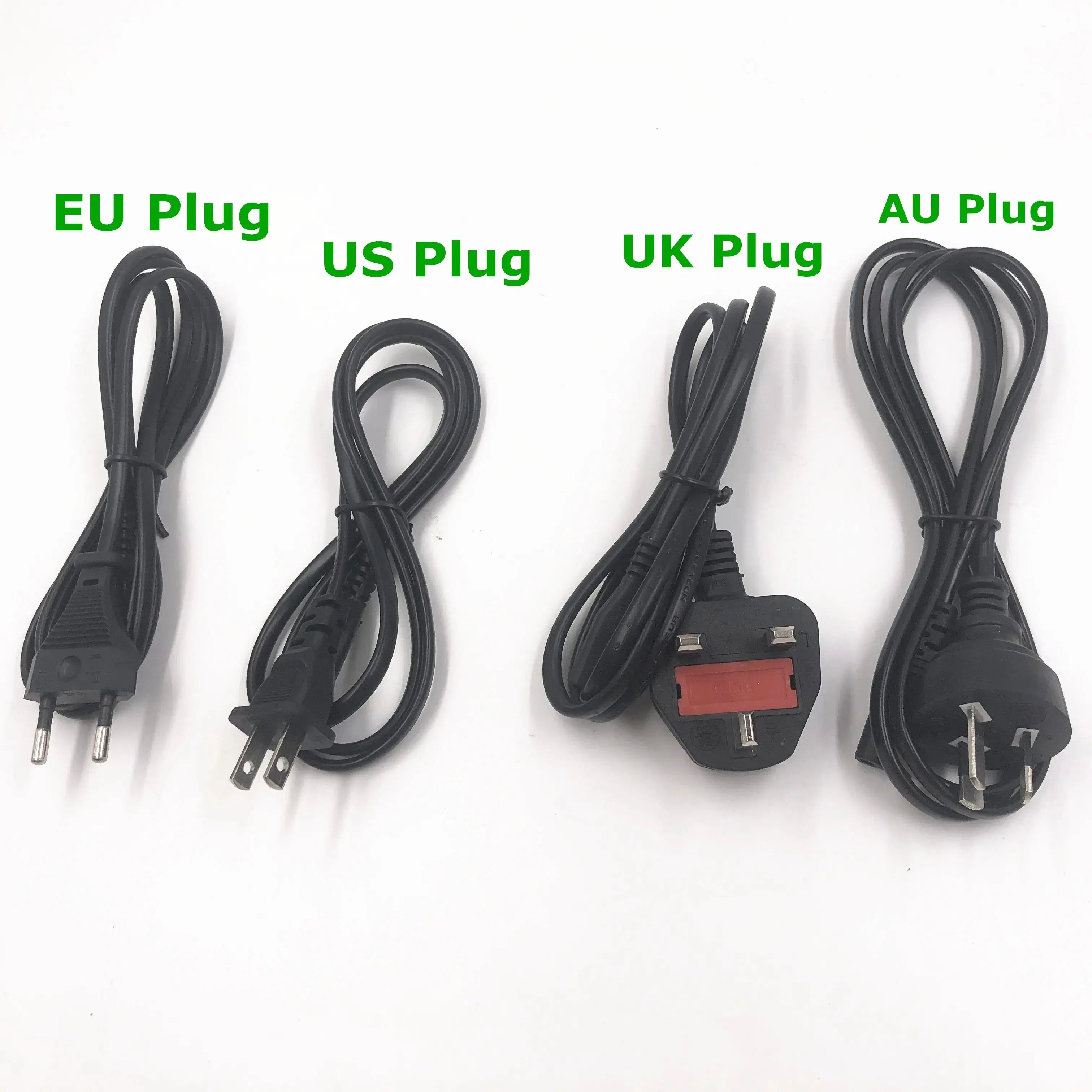

plug: AU EU US UK.. (optional)

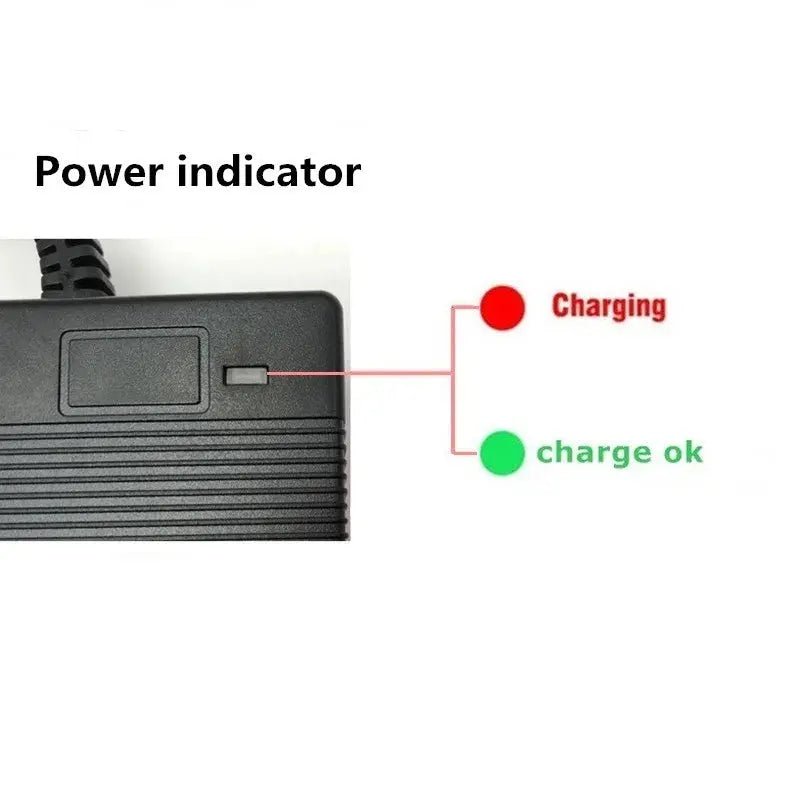

LED Display: Red: In charging state, Green: Full Charged

Charge mode: CC to CV

Use: lead-acid battery charger

Battery Number: 2 piece lead-acid battery

>>Product detail:

• For 24V lead-acid battery (not for li-ion battery), we have another link for 24V li-ion battery.
• RED LED--Charging
• Stop automatically and turn green LED light when the battery is full
• Fit for Razor E150, Razor E200, Razor E225S, Razor E300, Razor E325S, Razor Ground Force, Razor Mini Chopper, Razor MX350, Razor Pocket Mod (Bella, Betty, Bistro, & Daisy), Razor Pocket Rocket, Razor Rebellion

Specifications:

- 100% Brand New and high quality Super strong protection.

- lnput : 100-240VAC,50/60Hz

- Output : 24V 2A

- Charge indicator:Charging the red light is full of green light

- Security protection: OVP/OCP/ Overload protection/ Short-circuit protection

- Color: Black

- Power Max: 63W

- Plug EU / US / AU / UK

Package included:

1Pcs 24V 2A Charger

1Pcs power power cable

>>Product and parameters:

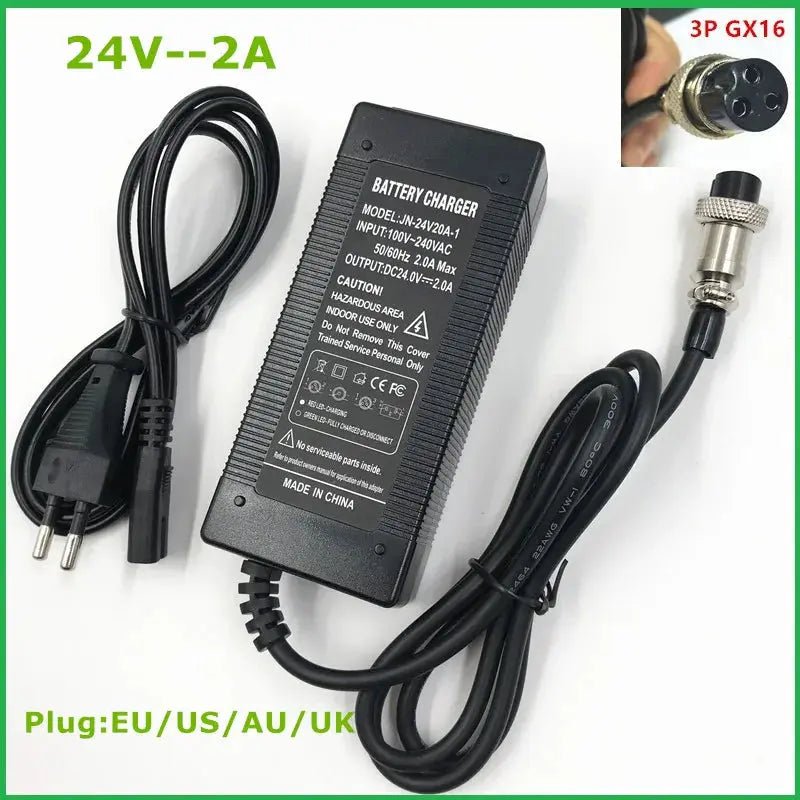

24V/2A lead-acid battery charger

No.

Item

Parameters

1

Input Voltage

100-240V 50/60HZ

2

Suitable Voltage/Frequency

90-264V 47/63Hz

3

Output Voltage

24V

4

Output current

2A

5

Power

63W

6

Efficiency

80%

7

Ripple/Noise

<100MV

8

Operating Temp

0-40°C

9

Storage Temp

-20-85°C

10

Operating Humidity

5%~90%RH

11

Storage Humidity li ion battery charger

5%~90%RH

12

Plug type

U.K./China/American/European/Australian/Japanese etc

13

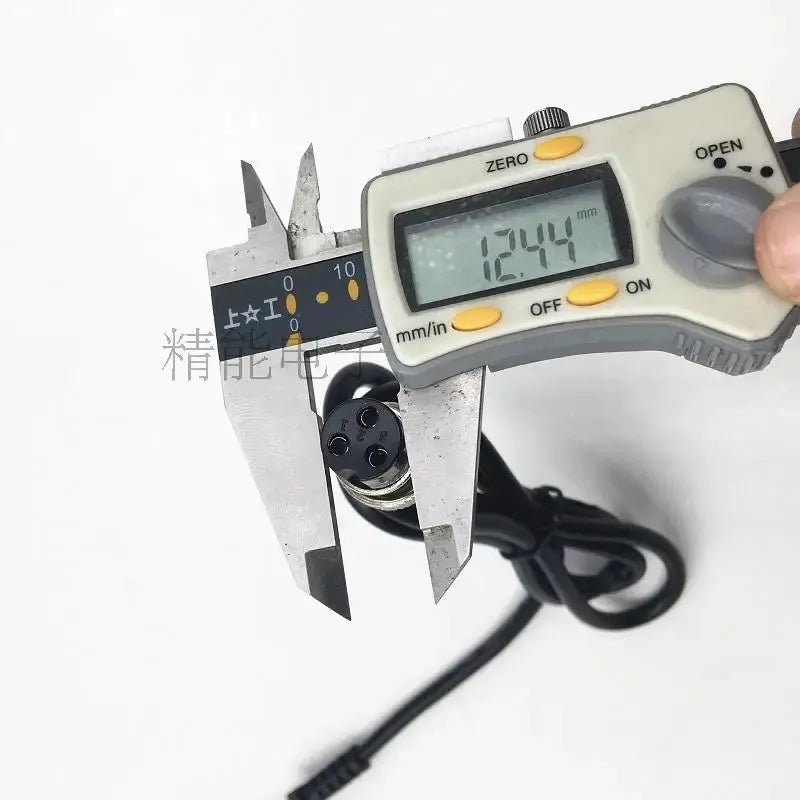

Connector

XLRF ( 1+ 3-) etc.

14

Enclosure material

PC

15

Characteristic

short/circuit/over protection

16

Safety standard

CCC/CE/UL

   DC plug: Send me a message for which item you need. IF no item                 choose message,we will courier "F" plug as default
